Description

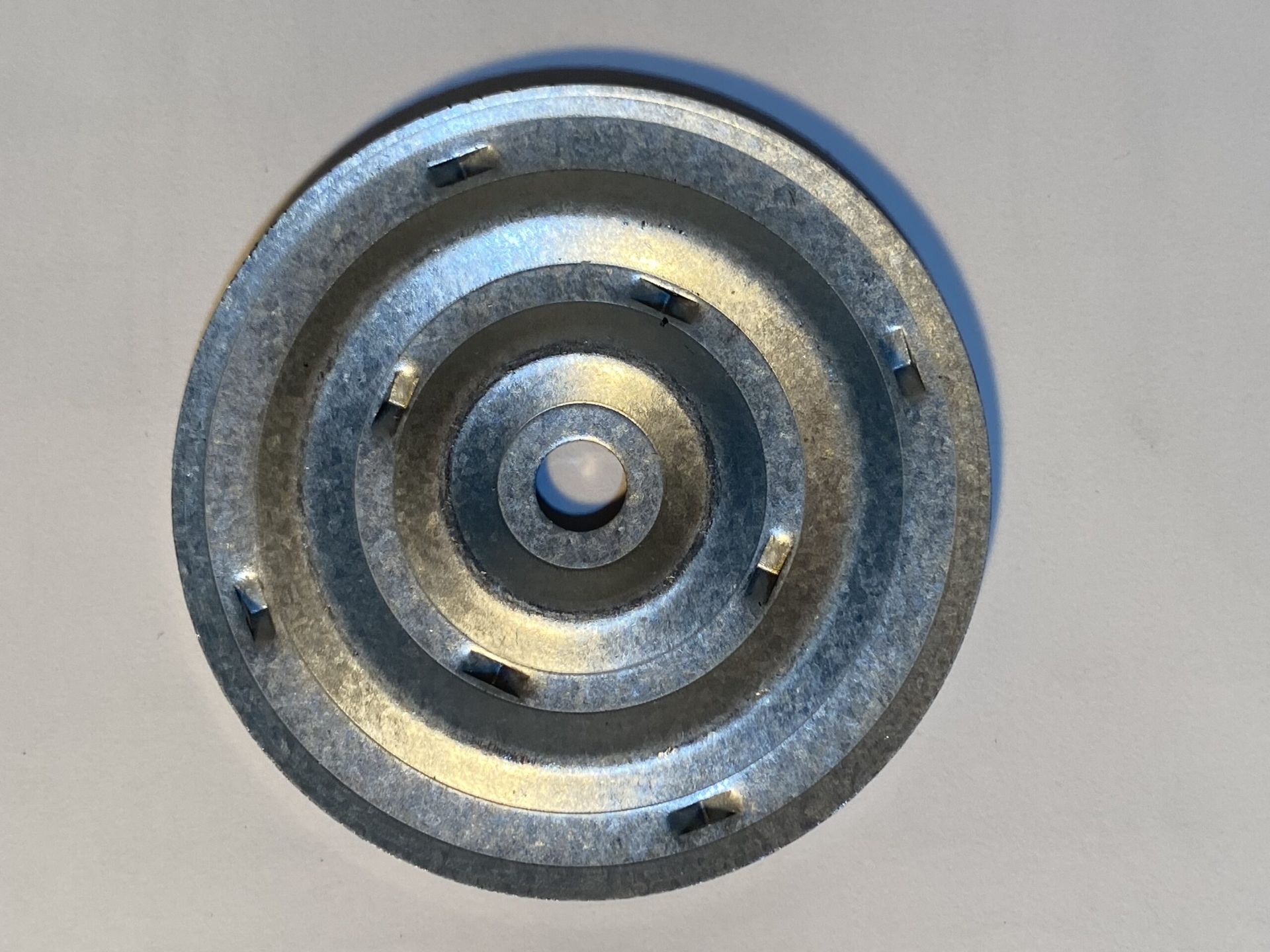

The Ace Screws plates are designed to be used with Ace Screws #15 Fasteners to secure ridged insulation, base sheet, EPDM, TPO, and PVC to steel or wood structural decks. Plate sizes include 3” Bullseye Insulation, 3” Wagon Wheel Insulation, 2-3/8” Barbed Seam, and 2” Seam Plates* to meet a variety of commercial roofing applications.

Storage

Store in original, unopened packaging protected from the weather.

Precautions

Eye protection must be worn during the installation of the fasteners.


FBC: FL41667


*Indicates NOT FM Approved
Ace Screws’ products and specifications are subject to change without notice. Neither Ace Screws nor its representatives practice architecture/engineering. Ace Screws offers no opinion on and expressly disclaims any responsibility for the soundness of any structure. Ace Screws accepts no liability for structural failure or resultant damages. Consult a competent structural engineer prior to installation if the structural soundness or structural ability to properly support a planned installation is in question. No Ace Screws representative is authorized to vary this disclaimer.


Product Packaging

Screw Length Table

Screw LengthThicknessPieces per Boxlbs. Per PackagePackages per Pallet
3” Bullseye Plate “FLATAss™”0.0197 in (0.5 mm)1,00039lbs60
3” Wagon Wheel Plate “FLATAss™”0.0197 in (0.5 mm)1,00039lbs60
2 3/8” Seam Plate “POINTYAss™”0.0315 in (0.8 mm)1,00040lbs60
2” Seam Plate “TINYAss™”0.0315 in (0.8 mm)1,00030lbs60
Properties
PropertyTypical Performance
MaterialManufactured using AZM technology (Aluminum, Zinc, and Magnesium)

Typical properties and characteristics are based on samples tested and are not guaranteed for all samples of this product. This data and information are intended as a guide and does not reflect the specification range for any particular property of this product.

Ace Plate Minimum Specification (Actual Test Results)
DIN 50018 15
Specification (Red Rust)
Average (Red Rust)

Average
Duration: 120 hours
N/A<0.25%3" WW Plate578 lbf
Duration: 240 hoursN/A0.25% < A < 0.5%3" BE Plate536 lbf
Duration: 360 Hours<15%0.5% < A < 1%2-3/8" Plates1142 lbf



2" Plate960 lbf

*FM Approvals in progress
